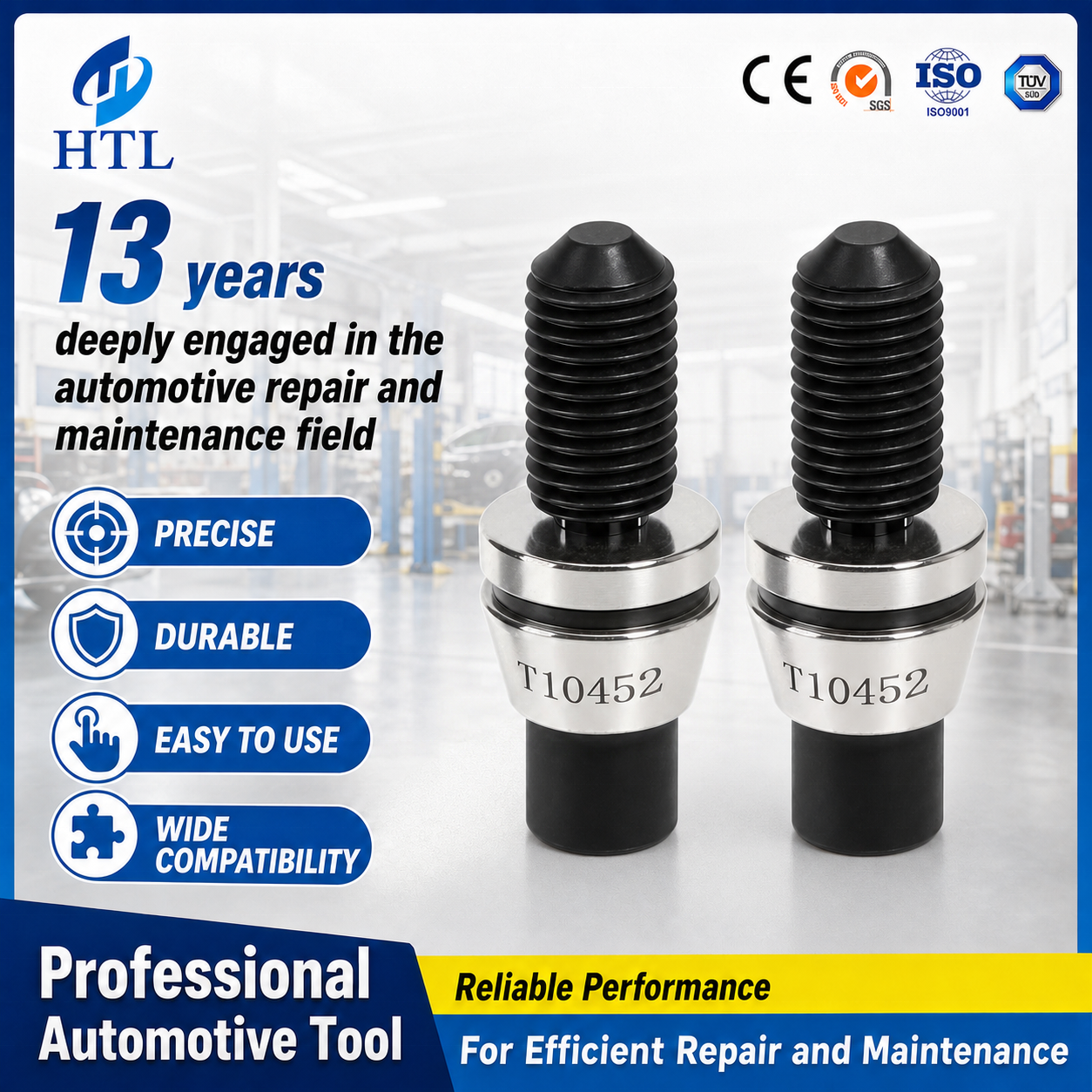

Subframe Alignment Locking Pins - Volkswagen Audi Group T10452 V03839037EQ

Servicing front-end suspension assemblies, power unit mountings, and steering gearboxes across Volkswagen Audi Group (VAG) vehicles—including Volkswagen, Audi, Seat, and Skoda unibody platforms—requires absolute alignment precision during reassembly. The subframe alignment locking pins T10452 manufactured by HTL provide commercial repair garages, chassis specialists, suspension technicians, and automotive specialty tool distributors with an indispensable OEM-equivalent chassis positioning system. Front subframes (aggregate carriers) support vital running gear components, including control arms, steering racks, anti-roll bars, and lower engine mounts. Whenever mechanics unbolt or drop the subframe to perform deep engine or gearbox repairs, the subframe shifts out of its original position due to chassis flex and bolt clearance tolerances. Reassembling the subframe without guided locking pins causes severe camber and caster distortion, uneven tire wear, steering wheel off-center errors, and chassis vibration. This specialized T10452 subframe alignment tool set solves these suspension realignment problems by locking the aggregate carrier precisely in place before retaining bolts are tightened, ensuring the subframe slides smoothly back into its exact factory position every time.

High-Tensile Hardened Steel & Precision Pilot Engineering

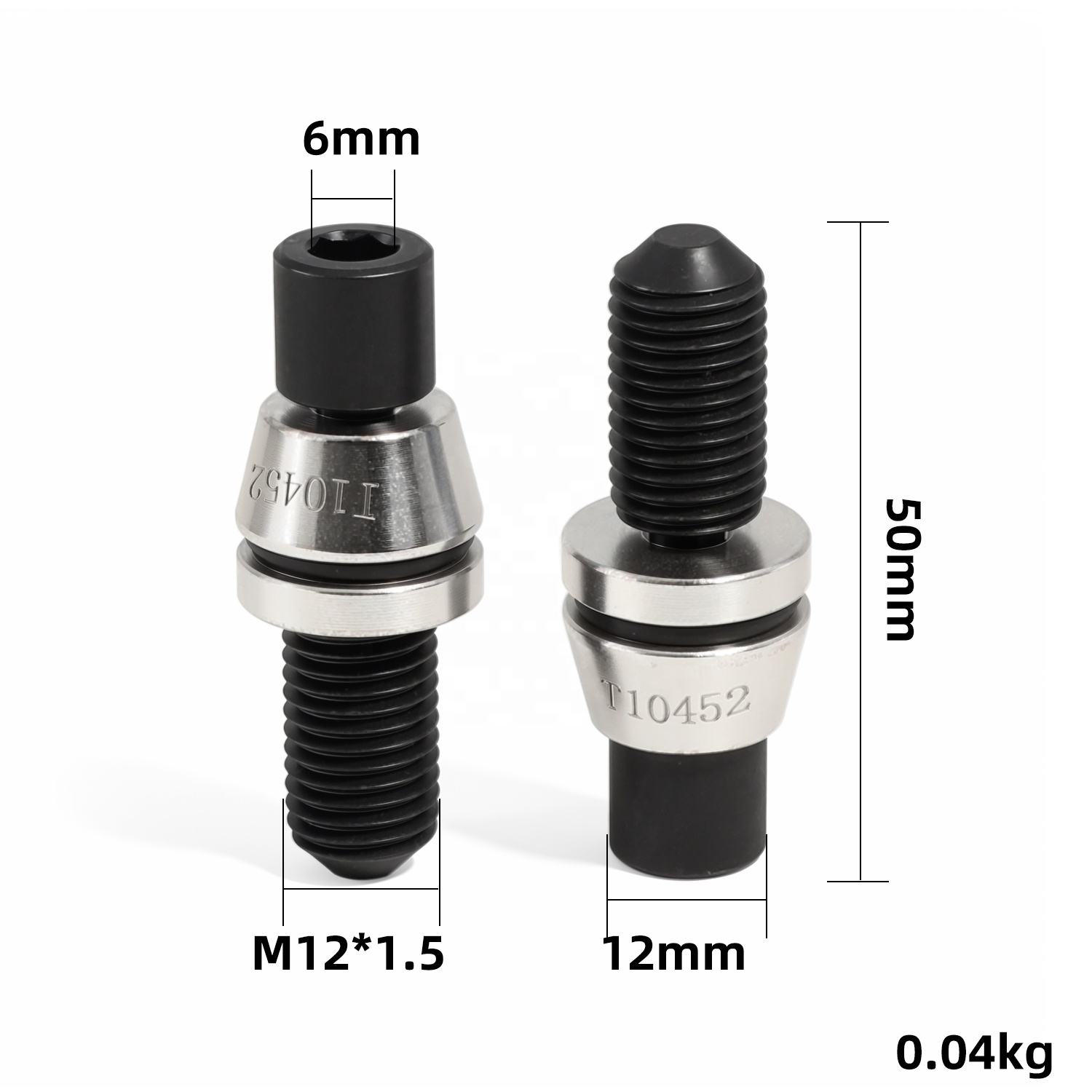

Every guide pin in the HTL VAG subframe locating pin set lineup is precision CNC-lathe machined from heavy-duty, heat-treated high-tensile carbon steel. Supporting heavy subframes and lower engine weight during suspension service demands guide pins that resist shear stress, thread deformation, and bending under multi-directional loads. Soft steel bolts or generic alignment rods flex under heavy carrier loads, galling subframe threads and jamming inside aluminum unibody mounting holes. HTL hardened locking pins maintain true thread pitch and axial straightness across hundreds of demanding commercial shop drop procedures. Finished with a heavy-duty corrosion-resistant zinc coating, these alignment pins repel chassis dirt, road salt, synthetic power steering fluid, engine lubricants, and moisture through years of heavy workshop usage.

Applications

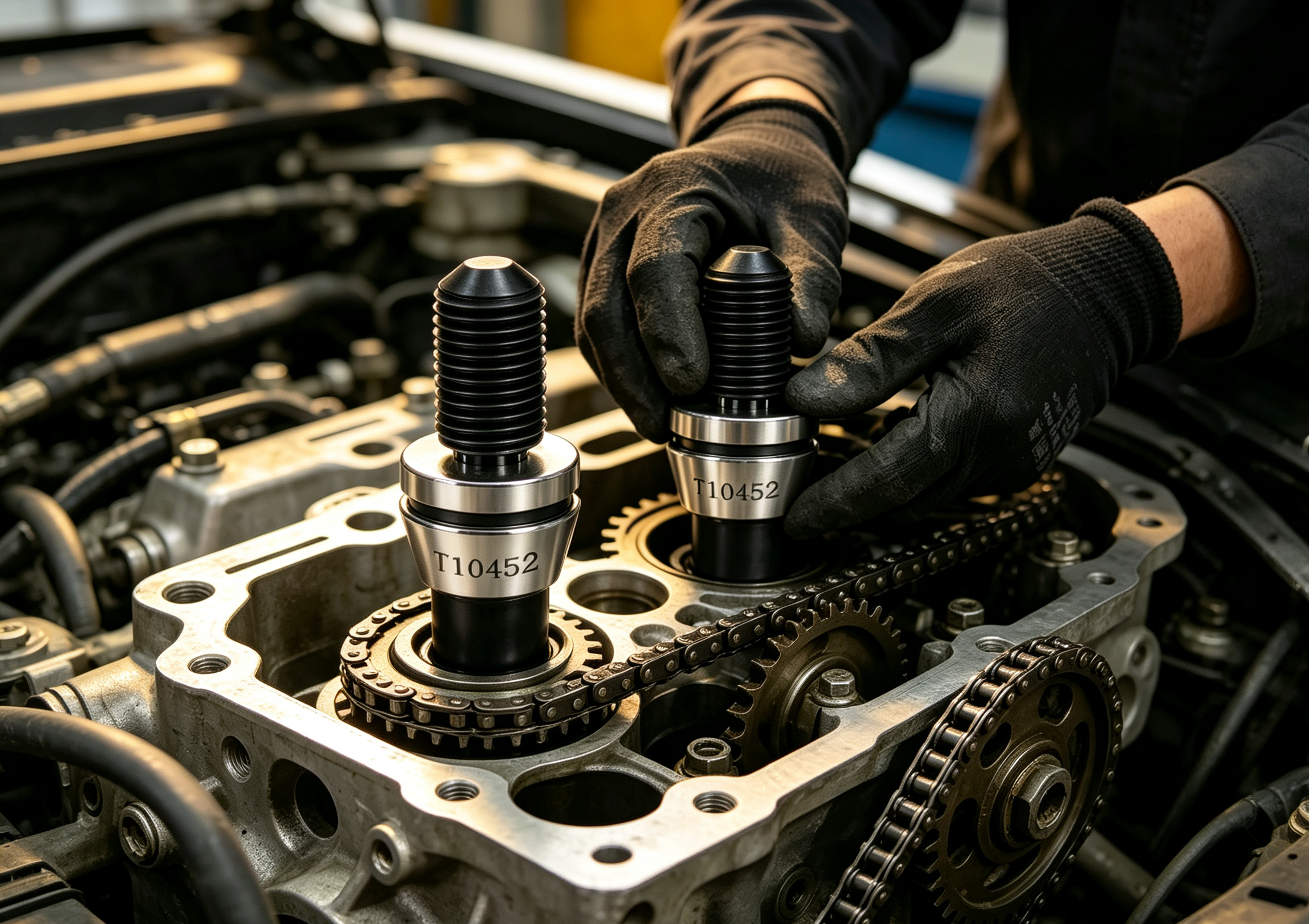

Engineered specifically for VAG unibody platforms, running gear maintenance, and professional alignment bay operations, these specialized pins excel across diverse repair routines where subframes must be unbolted or dropped. The Audi aggregate carrier locking pins and VW chassis alignment guide pin kit deliver exceptional performance across vital automotive service tasks:

• Suspension Bushing & Control Arm Servicing: Securing subframe alignment while replacing pressed-in lower control arm bushings, ball joints, or anti-roll bar mountings.
• Clutch Replacement & Transmission Overhauls: Holding the aggregate carrier firmly aligned when dropping the gearbox for clutch plate renewals, dual-mass flywheel replacements, or DSG service.
• Engine Replacement & Oil Pan Repairs: Maintaining chassis positioning during engine removals, oil pan gasket replacements, or front subframe lowering procedures.
• Steering Rack & Gearbox Maintenance: Guaranteeing exact subframe centering during power steering rack replacements, tie-rod servicing, or steering column alignment.
• Accident Repair & Frame Realignment: Assisting frame body shops in verifying subframe alignment tolerances and restoring factory chassis geometry after minor impact repairs.

Commercial Value

Equipping repair bays with the HTL subframe alignment locking pins T10452 dramatically improves shop workflow, technician safety, and service repeatability. By guaranteeing that subframes return to factory alignment specs before wheel alignment procedures begin, garages eliminate expensive wheel alignment comebacks, prevent chassis component binding, and reduce job labor times by up to 25%. For automotive specialty tool importers, chassis replacement parts suppliers, and commercial hardware wholesalers, stocking this high-demand VAG service tool guarantees steady sales volume, zero defect returns, and strong profit margins in the competitive automotive aftermarket.
